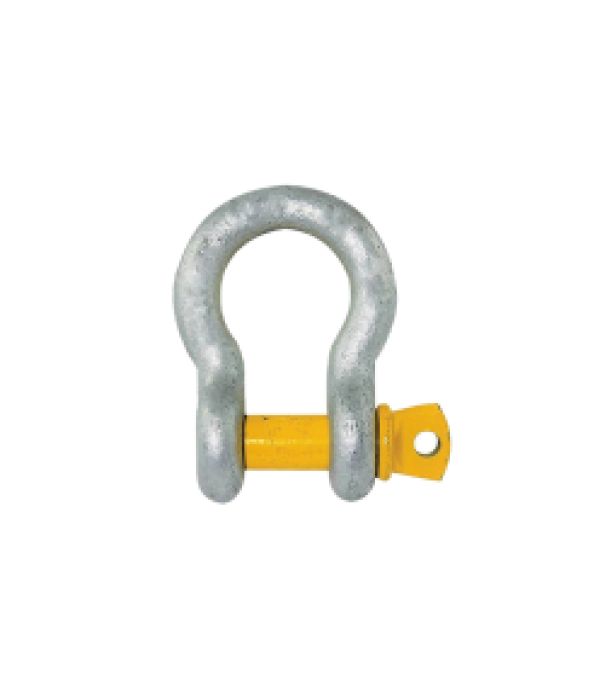

Screw Pin Bow Shackles
Screw Pin Bow Shackles are most commonly used for lifting applications, providing connections to chain, Wire Rope and other rated fittings within the Marine, Agricultural ,Mining and Engineering Industries.
Working Load
Limit |
Diameter
Bow |
Diameter
Pin |
Diameter
Eye |
Inside
Width |
Inside
Length |
Width
Bow |
tons |
A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
0.75 |
8 |
10 |
19 |
13.5 |
31 |
21 |
1.00 |
10 |
11 |
23 |
17 |
37 |
26 |
1.50 |
11 |
13 |
27 |
19 |
43 |
29 |
2.00 |
13 |
16 |
30 |
20 |
48 |
33 |
3.25 |
16 |
19 |
38 |
27 |
60 |
43 |
4.75 |
19 |
22 |
46 |
32 |
71 |
50 |
6.50 |
22 |
25 |
53 |
36 |
84 |
58 |
8.50 |
25 |
28 |
61 |
43 |
95 |
68 |
9.50 |
28 |
32 |
68 |
46 |
108 |
74 |
12.00 |
32 |
35 |
76 |
51 |
119 |
82 |
13.50 |
35 |
38 |
84 |
57 |
133 |
92 |
17.00 |
38 |
42 |
92 |
60 |
146 |
98 |
