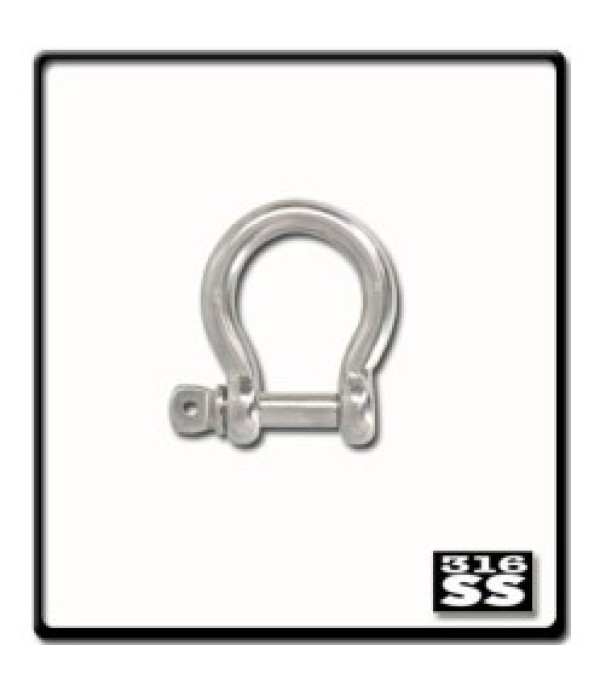

16mm Bow Shackle | Stainless Steel

16mm Bow Shackle | Stainless Steel

/ Write a review

N$229.43

  • Ex Tax: N$199.50
  • Price in reward points: 2
  • Brand: 316SS
  • Product Code: SHACBOW16SS
  • Availability: In Stock

Stainless Steel Bow Shackles



Stainless Steel Shackles are available in a standard Dee, U-shape format or a more open, rounded, pear-shape referred to as a Bow Shackle.

Dee shackles tend to be narrower than Bow which may be beneficial where space is restricted.
The more open rounded configuration of a Bow Shackle is better suited to taking angled or lateral loads.
Bow shackles are therefore generally used for Anchoring and Mooring applications.












Diameter
Bow		 Diameter
Pin		 Diameter
Eye		 Inside
Width		 Inside
Length		 Width
Bow
A mm B mm C mm D mm E mm F mm
6 6 12 12 24 18
8 8 16 16 32 24
10 10 20 20 40 30
12 12 24 24 48 36
16 16 32 32 64 48
20 20 40 40 80 60
22 22 44 44 88 66





Need some help? If you’re unsure what product you need, or want some professional expert advice. Call us today or send us a message.Contact sales Team at Marine Ropes





*Please Note!! Many of our pictures are stock photos provided to us by the manufacturer and do not necessarily represent the actual item being purchased. Please verify this picture
  accurately reflects the product described by the title and description on this page before you place your order.
