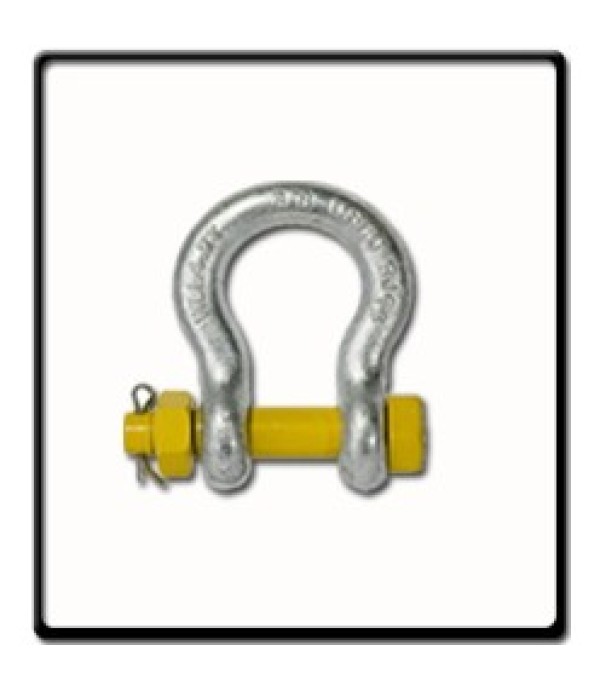

12 Ton | Safety Pin Bow - Shackle | 32mm - 1 1/4''

12 Ton | Safety Pin Bow - Shackle | 32mm - 1 1/4''

/ Write a review

N$696.60

  • Ex Tax: N$605.74
  • Product Code: SHACKPBOW32
  • Availability: In Stock



Safety Pin Bow Shackles


Safety Pin Bow Shackle are most commonly used for lifting applications, providing more permanent connections to Chain ,
Wire Rope and other rated fittings within the Marine, Agricultural, Mining and Engineering Industries. ... The Safety Pin
allows the pin to rotate during loading conditions .




Working Load
Limit		 Diameter
Bow		 Diameter
Pin		 Diameter
Eye		 Inside
Width		 Inside
Length		 Width
Bow
tons A mm B mm C mm D mm E mm F mm
0.50 6 8 16 12 29 20
0.75 8 10 19 13.5 31 21
1.00 10 11 23 17 37 26
1.50 11 13 27 19 43 29
2.00 13 16 30 20 48 33
3.25 16 19 38 27 60 43
4.75 19 22 46 32 71 50
6.50 22 25 53 36 84 58
8.50 25 28 61 43 95 68
9.50 28 32 68 46 108 74
12.00 32 35 76 51 119 82
13.50 35 38 84 57 133 92
17.00 38 42 92 60 146 98
25.00 45 50 106 73 177 127







Need some help? If you’re unsure what product you need, or want some professional expert advice. Call us today or send us a message.Contact sales Team at Marine Ropes





*Please Note!! Many of our pictures are stock photos provided to us by the manufacturer and do not necessarily represent the actual item being purchased. Please verify this picture
  accurately reflects the product described by the title and description on this page before you place your order.
